11.1. Scheduling execution of other programs

After setting the schedule to the task, then the create task dialog is displayed.

            Create/Edit task dialog is displayed.
            Add Task  button is used to add.
            1. Sysax FTP Script
            2. List of FTP commands
            3. External Program

Select anyone program from the option button and click Browse button used to choose the script or program from the local drive.

Click select start time button.

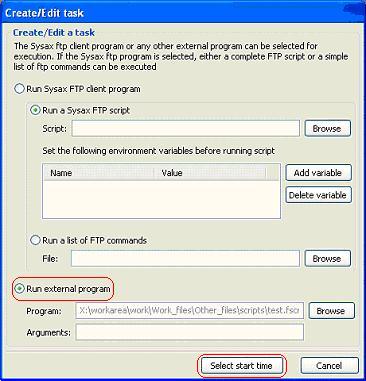

Figure 11.1. Select other programs

Select other programs

           Set the schedule time:
           Set task run time: dialog is displayed.
           In the  Set task run time: dialog, set the following information.
                    1. Set the task name.
                    2. Set the start date and name.
                    3. Set the rescheduling interval.
                    4. Set the log file name and path.
                    5. Select append to log.
                    6. Select rollover log file and size.
          After set all settings, click Add Task button from the  Select start run time  dialog. It returns to the sysax schedule manager  dialog.

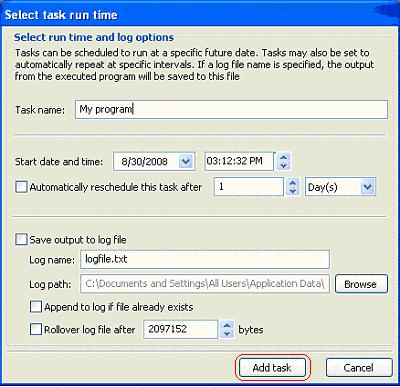

Figure 11.2. Select task run time

Select task run time

          To save all settings, click Save button in the  Sysax Schedule Manager dialog.

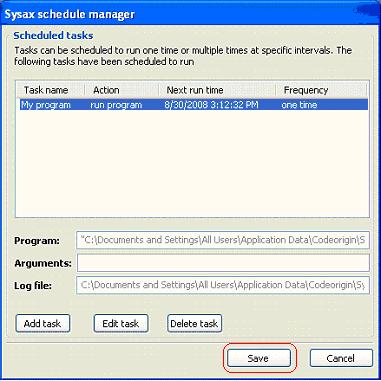

Figure 11.3. After adding task

After adding task
