Building a Transfer Control Matrix for Multiple Frameworks

Consider a healthcare billing company with a public parent corporation. Its transfer servers carry claims files (HIPAA territory), patient card payments (PCI DSS territory), feeds into the parent's general ledger (SOX territory), and data about individuals protected by one or more privacy laws. Four regimes, one estate, one admin team — and, left unmanaged, four separate compliance conversations every year asking that team almost identical questions in four different vocabularies.

The wasteful response is to treat each framework as its own project: a HIPAA binder, a PCI binder, a SOX spreadsheet, a privacy review, each maintained separately, each drifting out of date at its own speed. The efficient response rests on the fact this series keeps returning to: frameworks differ far more in wording than in substance. Nearly everything they want from file transfer reduces to the same core controls. So you build the control set once, and you build one document — the transfer control matrix — that maps each control to what every framework calls it and where the proof lives.

This article is the how-to: what the matrix is, how to construct it row by row, a starter version you can copy today, and the habits that keep it current so audit requests become lookups instead of scrambles. It is the capstone of our Compliance Frameworks series, and it assumes the mindset from the earlier articles: legal and compliance decide what applies; you build the machine that satisfies it.

The Problem the Matrix Solves

Without a matrix, multi-framework life has a recognizable failure pattern. The HIPAA assessor asks how ePHI is encrypted in transit, and someone spends an afternoon assembling the answer. Months later a PCI assessor asks how cardholder data is protected over open networks — the same question about the same server — and a different person spends a different afternoon rebuilding the same answer with different words. The SOX auditors ask about access to the ledger feed; the privacy team asks about security of processing; each request triggers a fresh excavation of configurations, logs, and tribal memory. Multiply by every control and every year, and whole weeks vanish into restating facts the organization already established.

Worse than the wasted time is the inconsistency risk. Four independently written documents describing one server will eventually contradict each other — one says logs are kept for one year, another says six — and contradictions are exactly what professional skeptics are trained to pull on. One source of truth, referenced by everyone, is both less work and more credible.

What a Control Matrix Is (and Is Not)

A transfer control matrix is a table. Rows are the controls you actually run — encrypted protocols only, unique accounts, activity logging, and so on. Columns are the frameworks you answer to. Each cell holds a short phrase: what that framework calls this control, or what it expects from it. A final column — arguably the most valuable one — records where the evidence lives: the setting to screenshot, the report to export, the review record to produce.

Be equally clear about what it is not. It is not a legal analysis, and its cells are deliberately shorthand rather than citations; your compliance team validates the mapping and keeps whatever formal cross-references they need. It is not a compliance certificate — a beautiful matrix describing controls that do not operate is fiction in table form. And it is not static: it describes a living estate, so it changes when the estate does. Think of it as an operating map, drawn by the people who run the terrain, checked by the people who read the law.

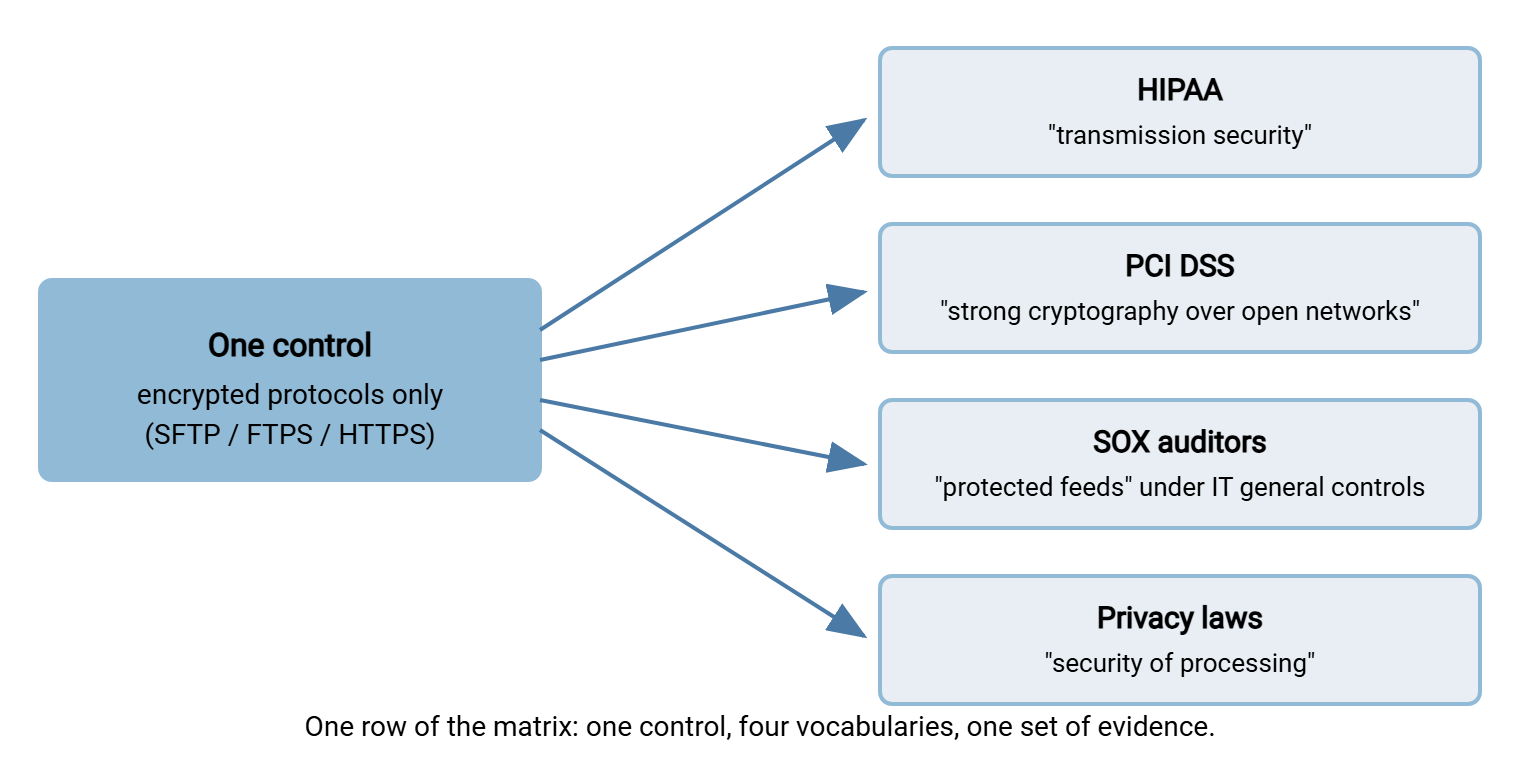

The diagram below shows the core mechanic — one control row, translated across four framework columns. Multiply this by ten or so rows and you have the whole document.

Step One: List the Controls You Actually Run

Start from reality, not from the regulations. Inventory your flows — every scheduled job, partner connection, and recurring manual transfer — and write down the controls that genuinely operate on them today. The five recurring themes this series opened with give you the categories: encryption, authentication and restriction, minimization, logging and monitoring, retention and proof. Under those headings, most estates produce a list like: encrypted protocols enforced; file-level OpenPGP for sensitive batches; named accounts only; key-based or multi-factor authentication; least-privilege folders; session and file-operation logging; log retention with periodic review; integrity checks on critical feeds; automated deletion of aged transfer copies; change control on job definitions.

Resist the temptation to list aspirational controls. If log review "should happen" but does not, it goes on a remediation list, not in the matrix — or it goes in flagged as partial, with an owner and a date to fix it. The matrix earns trust by being true; one cell that an auditor discovers to be wishful poisons the credibility of every other cell. Ten honest rows beat twenty hopeful ones.

Step Two: Learn What Each Column Asks

Now the columns. For each framework your compliance team says applies, learn its transfer-relevant expectations well enough to phrase the cells — which is precisely what the earlier articles in this series exist for: HIPAA and the Security Rule, PCI DSS and cardholder data, SOX and financial feeds, and GDPR-style privacy laws. If your organization also pursues SOC 2 or ISO 27001, they become additional columns with their own labels for the same rows — add them sparingly and let whoever manages those audits phrase the cells.

Then have compliance review the mapping. This usually takes one meeting: you bring the table, they adjust the wording, flag anything that maps imperfectly, and — importantly — confirm what is missing. The gaps the matrix exposes are its first gift: a framework column with an empty row is a to-do item discovered on your schedule instead of an auditor's.

A Starter Matrix You Can Copy

Here is a starter version covering the most common rows. The cells compress each framework's expectation to a recognizable phrase — your compliance team refines them — and your real matrix should add an evidence column on the right, discussed in the next section.

The Evidence Column: Where Proof Lives

The framework columns make the matrix a translator. The evidence column makes it a time machine — it is the difference between "we encrypt everything" and producing proof before the meeting ends. For each row, record where the demonstration lives and who can produce it. Three kinds of evidence cover nearly everything:

• Configuration evidence — the setting itself: the server's protocol configuration showing plain FTP disabled, the authentication settings, the folder permission layout. In a server like Sysax Multi Server, most rows of the starter matrix correspond directly to settings screens — protocols, per-account authentication method, IP allow and block lists — which makes configuration exports the fastest evidence you own.
• Activity evidence — proof the control operates: log extracts for sampled dates, failed-login reports, integrity-check results. This is where logging to a database pays off, since date-ranged extracts become queries; the craft of packaging them is covered in audit-ready reporting from transfer logs.
• Process evidence — proof humans did their part: access review sign-offs, change tickets, incident notes. For automated flows, the job definitions and notification history in a tool like Sysax FTP Automation — what runs when, what it does before and after transfer, who gets emailed on failure — document the operations story auditors ask about.

Write the evidence cell as a pointer, not a promise: "Multi Server settings export, kept in the evidence folder, refreshed quarterly" beats "we can show this." If producing a row's evidence takes longer than fifteen minutes, that row is telling you where the next process improvement goes — the theme our audit-ready reporting series develops into a full practice.

Two extensions worth adding

Extension one: tag rows by data type. Not every control applies with equal force to every flow, and pretending otherwise makes the matrix overclaim. The fix is a light second dimension: tag each flow in your inventory with the data it carries — ePHI, cardholder data, financial reporting, personal data — and note in the matrix which tags make each row mandatory rather than merely recommended. In the billing company's version, file-level OpenPGP is mandatory for claims batches and anything with card data, recommended elsewhere; integrity checks with control totals are mandatory for the ledger feed specifically. When an assessor asks "does this control cover everything?", the tagged matrix lets you answer precisely — here is the rule, and here is its scope — instead of hoping the universal claim survives sampling.

Extension two: mark partials and exceptions explicitly. Every real estate has a legacy corner — the one partner still on FTPS with an old certificate, the appliance that cannot do keys. A cell that is only mostly true gets a visible flag: "all flows except the legacy lab feed — compensating control: IP-restricted, isolated folder, quarterly review — remediation owned and dated." Auditors respect a documented exception far more than a discovered one; it is the difference between a managed risk and a hidden one. The flags also hand your twice-yearly review its agenda, because every flag is a standing question: is this fixed yet, and if not, is the compensation still holding?

Keeping the Matrix Current

A matrix decays the moment the estate changes, so treat it like a runbook, not a report. Three habits keep it alive:

• Give it an owner. One named person — usually the senior transfer admin — owns accuracy, with compliance owning the mapping. Shared ownership means no ownership.
• Review on a rhythm. Twice a year, owner and compliance walk the table together: rows still true? columns still complete? evidence pointers still valid? Thirty minutes when nothing changed; invaluable when something did.
• Update on triggers. New flow or partner, retired flow, product upgrade or replacement, an audit finding, or word from compliance that a new framework applies — each one is an edit to the matrix the same week, not at the next review. Version the document and keep the old versions; "what did we claim last cycle" is itself an audit question.

The matrix also pairs naturally with your written transfer policy — the policy says what people must do, the matrix says what the systems enforce and how to prove it. If the policy does not exist yet, our file transfer policy series is the companion project.

From Audit Scramble to Lookup

Now watch the document work. The HIPAA assessor asks: "How is ePHI protected in transit?" Row one: encrypted protocols only; cell says transmission security; evidence pointer says configuration export plus a log extract showing an actual claims transfer over SFTP. Ten minutes, answered, credible. The PCI assessor asks their version; same row, second column, same evidence with a settlement file example. The SOX auditors sample changes to the ledger feed; the change-control row points at the ticket queue. The privacy team fills a vendor questionnaire; they copy phrasing straight from the privacy column without interrupting you at all.

Notice what changed. The facts are identical to the ones the scrambling version of this organization eventually produced. What the matrix adds is speed, consistency, and the quiet confidence of a team that answers hard questions from a document instead of from memory. Auditors notice that difference — organizations that can look things up get shorter follow-up lists than organizations that visibly reconstruct. And when a new framework arrives someday, it arrives as one new column against existing rows, not as a new project.

The document earns its keep outside formal audits too. When a large customer sends a security questionnaire asking how you protect data in transit and who can access it, the answers come off the matrix in an afternoon — the tables-turned situation our vendor assessment series examines from both sides. And when a new administrator joins, the matrix is the fastest orientation that exists: ten rows that say what must stay true about this estate, why four different sets of outsiders care, and where to find the proof.

Build checklist

The whole method, in copy-paste form:

CONTROL MATRIX — BUILD STEPS
[ ] Inventory transfer flows (jobs, partners, ad-hoc routes)
[ ] List controls that actually operate today (be honest;
    aspirations go to a remediation list, or in flagged as partial)
[ ] Confirm applicable frameworks with compliance — the columns
[ ] Draft cells: what each framework calls each control
    (start from the table in this article)
[ ] Add the evidence column: pointer + producer + refresh cadence
[ ] Review with compliance; record gaps as dated to-do items
[ ] Name an owner; schedule twice-yearly reviews
[ ] Define update triggers: new flow/partner, product change,
    audit finding, new framework
[ ] Version the document; keep prior versions
[ ] Test it: time yourself answering one mock audit question
    per column using only the matrix

The Capstone View

Everything in this series funnels into this one document. The frameworks care about your transfers for the same underlying reasons; each one phrases the same five demands its own way; and the matrix is where the translation gets written down once, attached to evidence, and kept current. Build it honestly, review it on a rhythm, and the multi-framework burden shifts from four annual excavations to one well-maintained map.

If you landed here first, the framework deep dives are the natural backfill — start with HIPAA or whichever regime owns your riskiest data, and note that privacy laws are the column most estates add next; all four deep dives are linked from the columns section above. And for the meeting where the matrix meets its audience, continue with our audit-ready reporting series.
